Drexel SCADA System for Water Treatment Plant

Supervisory Control and Data Acquisition (SCADA) is a system that aims to monitor and control the field devices 24/7 at your water treatment plant. As a matter of fact in today’s world, there are SCADA system almost everywhere. This includes industrial plants, manufacturing, transportation, oil and gas, power distribution, water control etc.

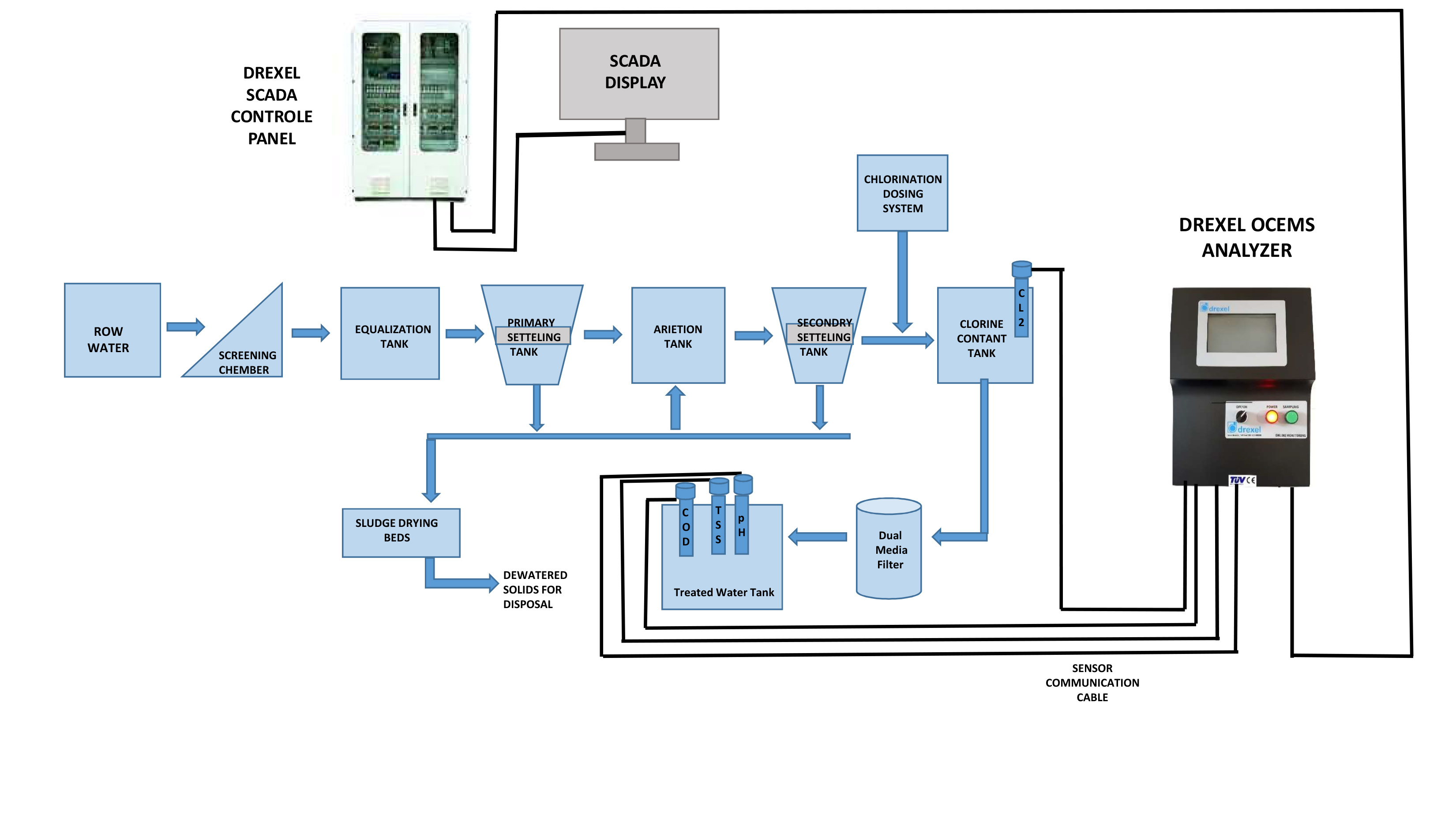

Drexel SCADA is a cloud-based system which allows total water management of STP plant. It takes input of water stations(BOD, COD, TSS, pH & Flow) from Drexel Online Effluent Monitoring System(optional) which results in automatic control of STP plant for purging, dozing, pumps and flow valves

SCADA System for Wastewater Treatment Plant

SCADA for Water and Wastewater Management

BENIFITS OF SCADA SYSTEM

Reduce labour cost required for troubleshooting
Increase compliance with regulatory agencies through automate report generating
No requirement of large capital investment
Monitoring from a remote location by 24/7
Reduce cost normally associated with man-power
Reliable automated system working 24/7
Logging of data through online Server

MAIN CONTROL FEATURES

Scada interfrace panel
The existing MCC is connected with SCADA panel for the operations of all motors, pumps, blowers of STP plant as required in process
Electromagnetic Flow meter at Inlet and outlet for monitoring the actual incoming and discharge of water
Two no. of DO Sensors are installed in aeration and final tank
STP parameters BOD, COD, TSS and pH can be monitored in Online Pollution Monitoring System
Level Sensors are installed in the Collection tank 2 so that the distribution of water through pumps from Collection tank is stream lined
The complete process is displaying on the final HMI display fitted on SCADA Panel
Visual & Buzzer Alarm is activated in case of parameter values exceed the limits
